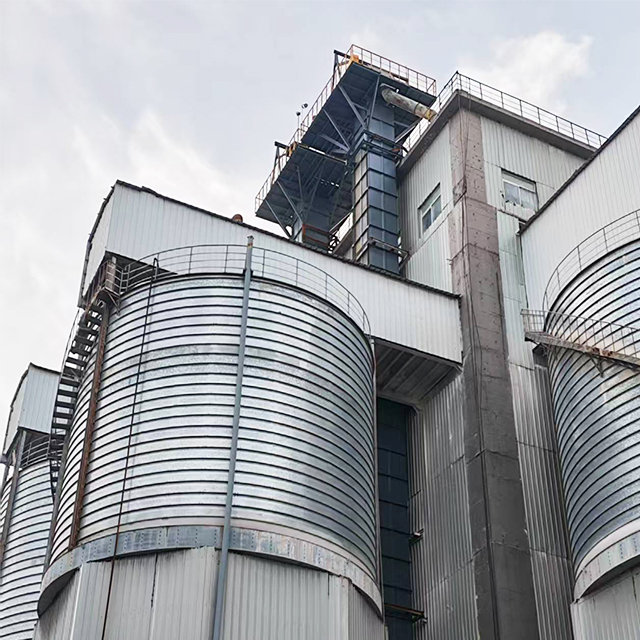

Less Maintenance Silica Sand Efficient Bucket Elevator

Share to:

Less Maintenance Silica Sand Efficient Bucket Elevator

Double channel bucket elevator with total-enclosed design, small environmental pollution
Vertical shaft gearbox, fluid coupling and backstop device ensures steady running
Customized height to meet your individual elevating requirement
Wide application range in various industries and sectors
Driving device brand can be domestic or imported brand as per your demand
Efficient bucket elevator can be disassembled into sections to save space during transportation
Inspection window is provided for double casing bucket elevator to check the operation status

Availability:

Quantity:



Inquire Add to Basket

Model:
TDG/THG
Brand:
PK
Code:
8431390000

Product Description

Overview

Just as the name implies, the efficient bucket elevator has distinctive features to lift dry, bulk, fluidity powder, granular and block material at high speed and capacity due to its double casing structure.

It adopts high strength rubber belt or ring chain as its traction component, which is the upgrade version of TD belt bucket elevator and TH ring chain bucket elevator.


详情页3 详情页4

Advantages and Features

● Provided with specially designed mechanical belt joint for connecting the belt

● Lining plate is provided to ensure wear-resisting performance as per requirement

● Can be integrated to a combined system with other machinery

● Belt and chain type elevators available to meet your specific requirements

● Head maintenance platform for supporting driving device and troubleshooting

● We can accommodate backstop in drive configurations to avoid reversal

● Dry, bulk, fluidity powder, granular and block material can be handled

Technical parameter

TDG Belt Bucket Elevator（with Sh bucket）Technical Parameters Table
Main Technical Parameters	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG
Main Technical Parameters	160	200	250	315	400	500	630	800	1000	1250	1600
Capacity Q（m³/h）	32	45	72	101	158	220	348	492	788	1.22	1541
Bucket Volume /L	2.6	4	7	10	16	25	40	64	102	161	255
Pitch of Buckets /mm	260	300	325	360	420	460	520	580	650	720	820
Weight of traction belt&bucket per meter（kg/m)	22	21.5	33	33.2	42.2	62.3	78.53	106	145	155.5	223
Running Speed v/（m/s)	1.2	1.2	1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Lifting height max/m	80	80	80	80	80	80	80	80	80	80	80
Note:the capacity in the table is calculated according to 75% of the fill factor.
