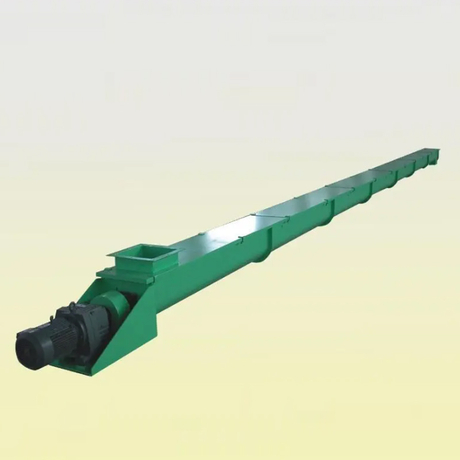

Quantitative Feeding Plastic Fiber Trough Screw Feeder is a commonly used mechanical pipeline equipment, mainly used for cement, lime, fertilizer, feed, grain, coal and other transport equipment.

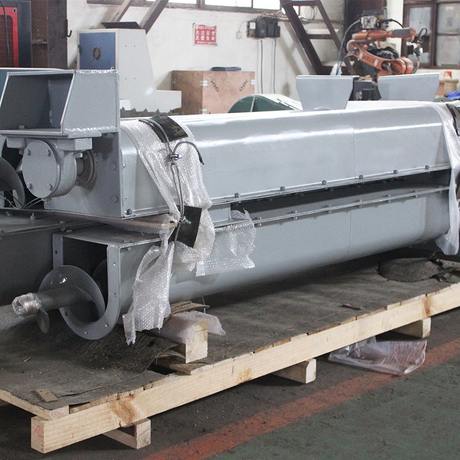

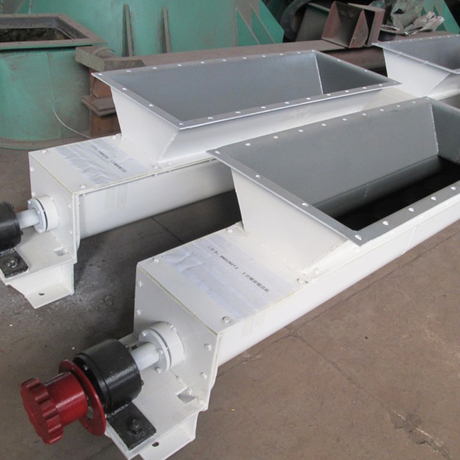

Quantitative Feeding Plastic Fiber Trough Screw Feeder is a kind of mechanical conveying equipment for horizontal, inclined and vertical conveying of bulk, powder and small particle materials. The groove screw conveyor is mainly composed of a groove body, a spiral blade and a transmission mechanism.
Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ
LS screw conveyor specification & technical parameters | |||||||||||
Type | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
Diameter/mm | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
Screw pitch/mm | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
technical parameters | n | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
Q | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
n | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
Q | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
n | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
Q | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
n | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
Q | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 | |
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33 | |||||||||||
1. Trough body: The tank body is the main part of the conveyor, responsible for transporting materials to the destination. The shape of the tank is determined by the nature of the material and the conveying distance, and the common ones are round, square, U-shaped, tubular and so on.
2. Spiral edge: The spiral edge is composed of a spiral shaft and a spiral blade, which is responsible for pushing the material forward along the tank. Spiral blades include solid blades and hollow blades, most of which are made of hollow blades, light weight, small resistance when conveying materials.
3. Transmission mechanism: used to transmit power to spiral shaft, including motor, reducer, coupling and belt drive
