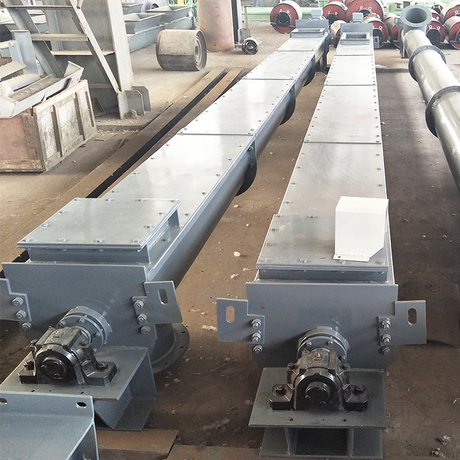

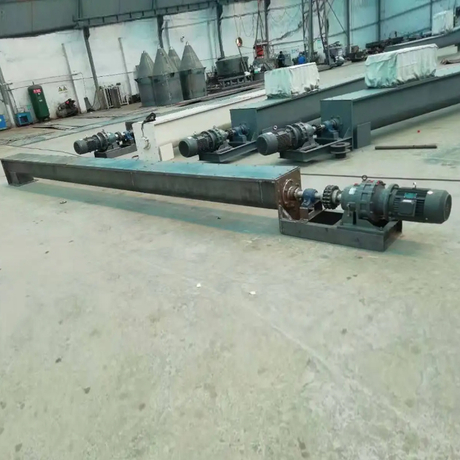

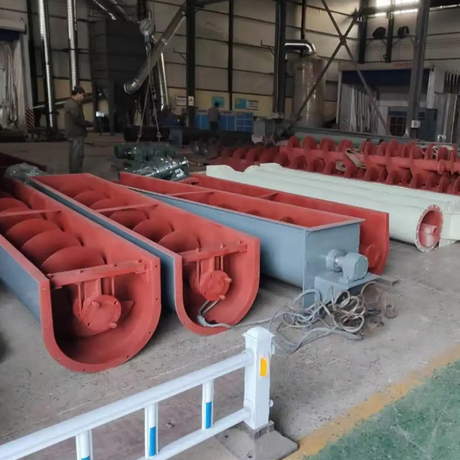

Trough screw conveyor offers efficient solution in many bulk handling industries horizontally or at a slight incline as an efficient way. It is available for all kinds of powder, granular and small block material in building materials, chemical, electric power, metallurgy, coal mine, food and other industries.
The environment temperature of screw conveyor normally ranges from 20℃ to 50 ℃; Max.conveyor inclination can reach up to 20 °.
1. Total sealed structure, no pollution to the environment
2. Conveyor length can be customized according to your need
3. Simple structure,compact design,which saves a lot of space
4. Multiple inlets and outlets can be customized as per requirement
5. Can be disassembled into several sections to save space during transportation
6. The conveyor can withstand material temperature up to 200 ℃
7. Wide application range to satisfy various bulk material transportation demand
8. Safety switches can be provided to product screw conveyor operation
9. Speed sensor is provided to detect screw conveyor rotation speed
10. Dust-tight with bearings suitable both for radial and axial load
LS screw conveyor specification & technical parameters | |||||||||||
Type | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
Diameter/mm | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
Screw pitch/mm | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
technical parameters | n | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
Q | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
n | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
Q | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
n | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
Q | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
n | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
Q | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 | |
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33 | |||||||||||
