Gyratory screen is designed to provide precise and accurate sieving,classifying and filtrating material according to the particle size.it adopts eccentric mechanism which drives the material on the screen surface do uniform gyratory reciprocating swing motion,which make the material fully contacts with the sieve,thus it enhances the screening efficiency without deteriorating the quality of the material.
Gyratory screen can meet various sieving solution and allow separations with openings from 12mm to 325mm.
Materials are spread and stratified on the full screen surface, a combination of actions takes place where the screening begins with a horizontal circular motion at feed end, then it gradually changes to an elliptical motion at the centre which is good for material sieving, a straight-line motion at the discharge end, the material movement track becomes short and then materials flow out of the outlet.

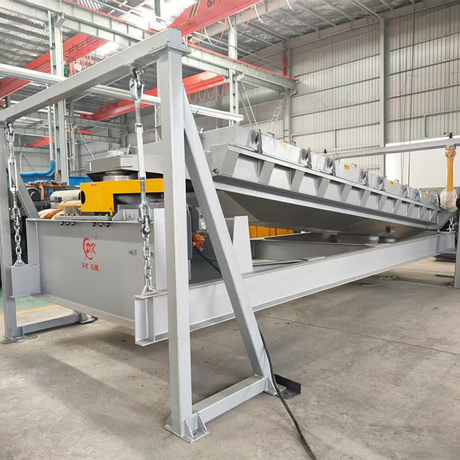

Product Photo
1. Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.
2.Screen long service life- No vertical component avoids the impact and damage of material to screen.
3. Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
4. Environmentally Friendly- Fully enclosed structure, no dust pollution, improve working conditions for operators as well.
5. Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement.
6. Customized order- multi- layer, different capacity and mesh size can be customized according to customer's demand.
7. Quick Screen Changes-Quick release device is provided to take down the net rack and replace the screen rapidly.
8. Various sieving solution- Gyratory screen allows separations with openings from 12mm to 325mm.
